product Infomation

CellaTemp® PK Series

Infrared thermometer-CellaTemp® PK 11



Download file

Product introduction

Stationary Pyrometers

Infrared thermometer-CellaTemp® PK 11

The CellaTemp® PK 11 is an infrared thermometer for fast, non-contact and wear-free temperature measurement from a safe distance at a temperature range from 0 to 1000 °C.

Features:

  • Temperature range from 0 to 1000 °C
  • Universally configurable switching output
  • Precision lenses provide high optical Resolution
  • IO-Link interface
  • All parameters adjustable by control keys on the sensor or via interface from the plant control
  • Test function to be activated by control key or control signal

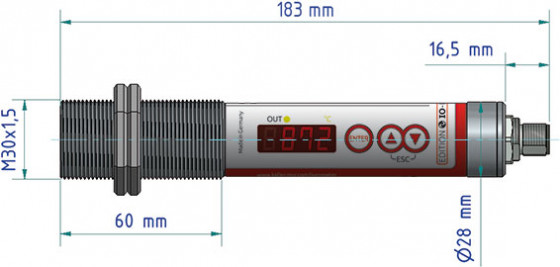

  • Easy installation thanks to M30 screw thread mounting

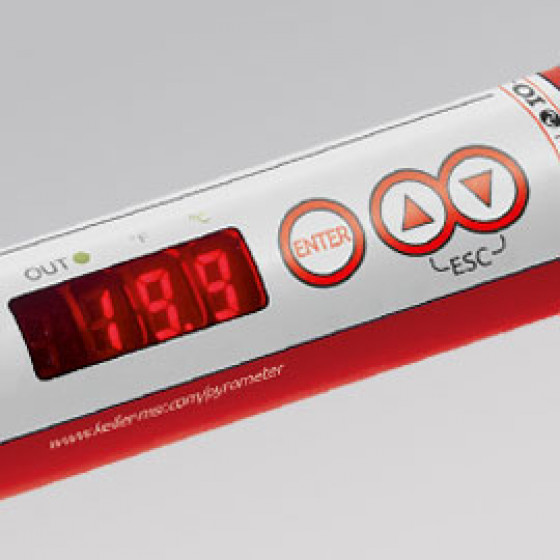

  • Bright high-intensity LED display
No Model Measuring range Focus area Measuring field
1 PK 11 AF 1/IO-Link 0 - 1000 °C 0.3 m 11 mm
2 PA 11 AF 2/IO-Link 0 - 1000 °C 0.9 m 33 mm



For more detail information CellaTemp® PK 11

For more information about IO-Link
