Wire Crimp Pull Tester

Product introduction

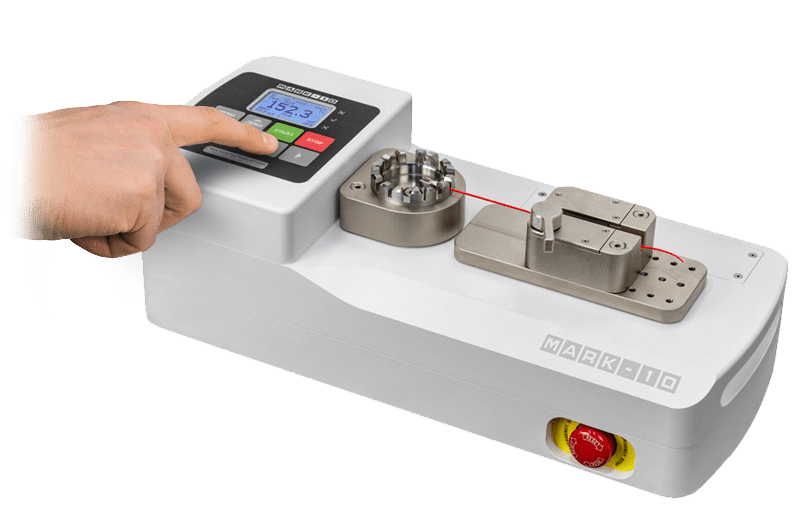

Wire Crimp Pull Testers

Mark-10 wire crimp pull testers measure the pull-off force of crimped terminals, up to 200 lbF (1 kN) for wire diamaters up to 0.25" (6.4 mm). Select from the economical and quick-action WT-205 benchtop tester, motorized WT-205M, or portable hand-operated Series R06. All testers capture peak forces and allow the user to output to a PC via USB.

For higher forces and larger sample sizes, consider a test frame-based system, consisting of a choice of test frames, and grips.

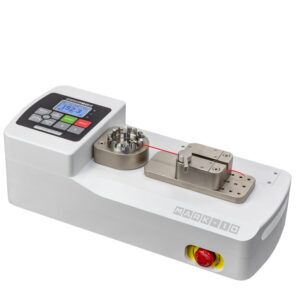

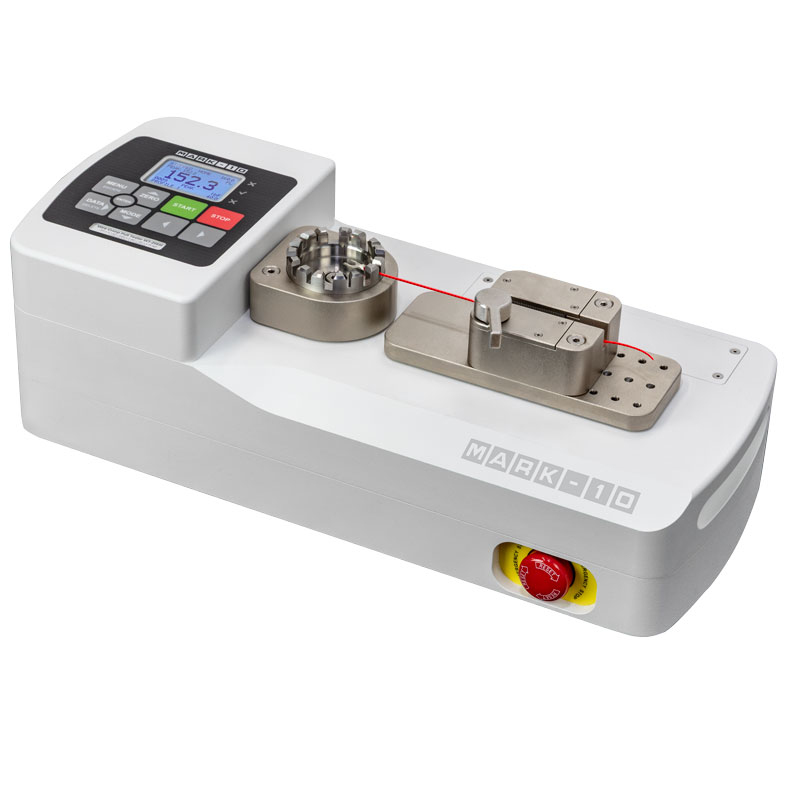

Model WT-205M

Motorized, automated operation with configurable test speed.
Standard turret and wedge grip secure the sample. Alternative grips available
200 lbF (1 kN) capacity
USB, RS-232, Mitutoyo, analog, set point outputs
2,000-point data memory with time stamp and statistics
Auto output / data storage / zero / return home upon sample break

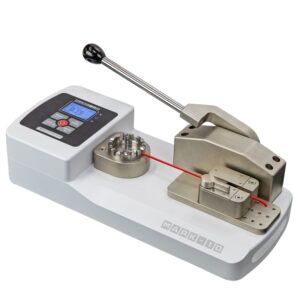

Model WT-205

Quick-action lever operation
Standard turret and wedge grip secure the sample. Alternative grips available.
200 lbF (1 kN) capacity
USB, RS-232, Mitutoyo, analog, set point outputs
1,000-point data memory and statistics
Auto output / data storage / zero upon sample break
Available functions: Profiles, Date & time stamp

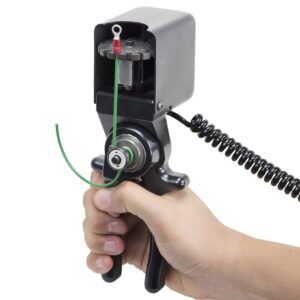

Series R06

Portable, hand-operated ratcheting mechanism
200 lbF (1 kN) capacity
Ideal for field testing and audits
Requires a Mark-10 indicator
